Detailed Workflow and System Architecture for the Authorization Service

Typical scenarios for:​

  1. Registration
  2. Traditional login system (login + password)
  3. Google registration/authentication
  4. Web3 authentication … other scenarios

1. User clicks "Login" on the Side App (an Application integrated with AuthCentral).​

They are then redirected to the AuthCentral form, which offers both registration and authentication options.

2. User Registration (Sign-Up Form) https://authcentral-1.dev.hero.io/:​

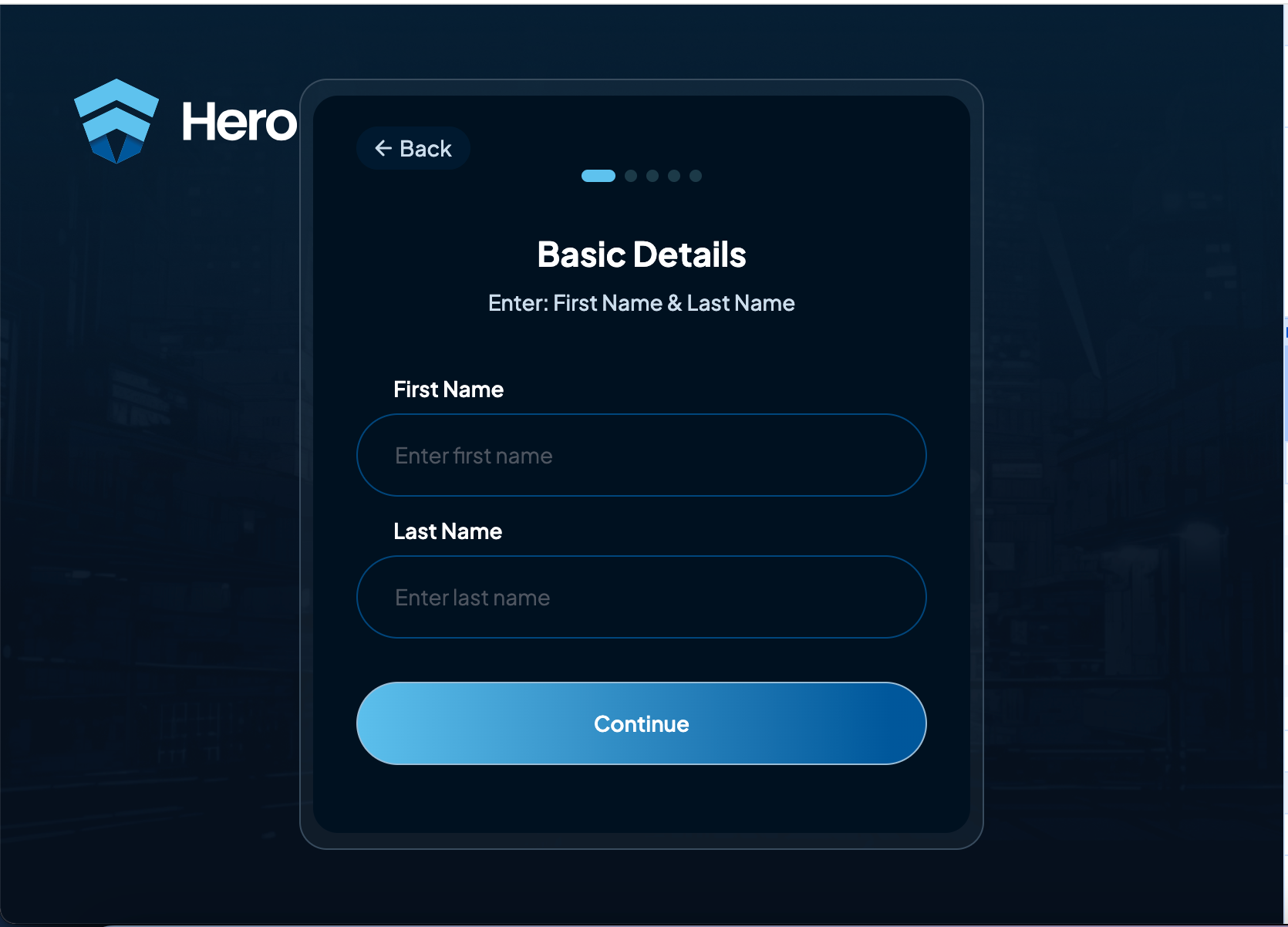

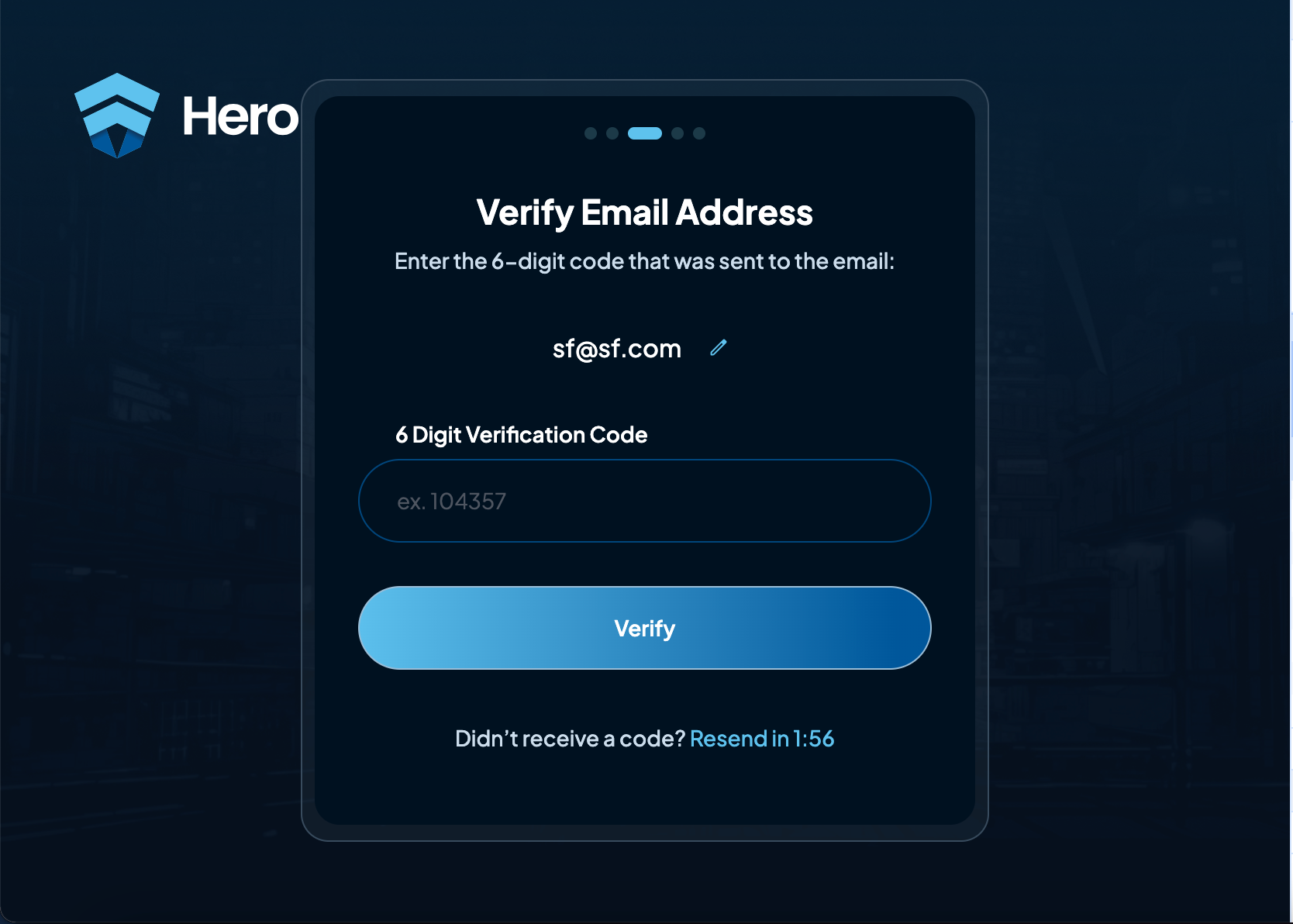

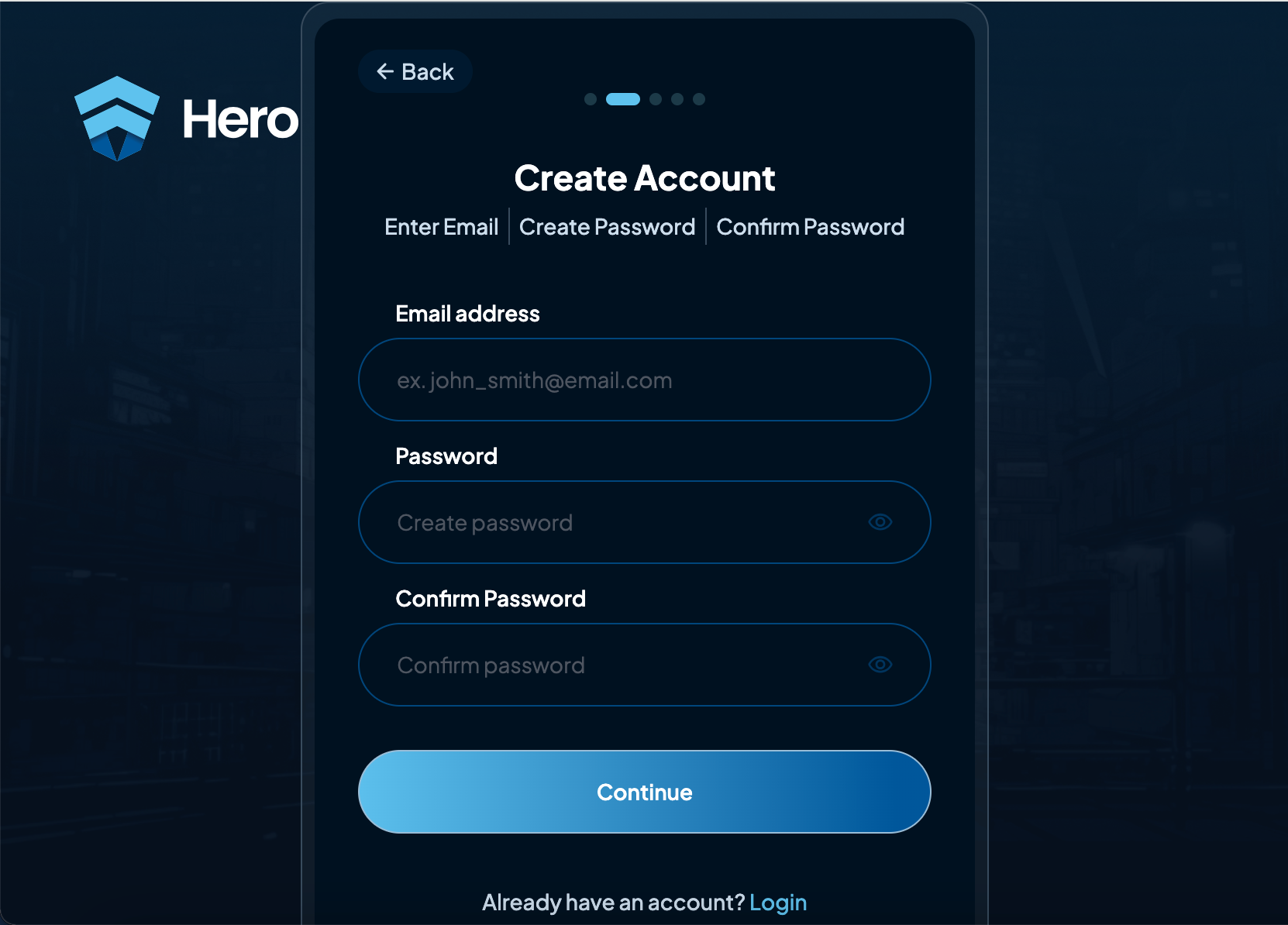

Basic Details Form Create account Form Verify Email Form

  • Form Components:

    • First Name
    • Last Name
    • Email Address
    • Password
    • 6 Digit Verification Code
    • Phone Number (optional)

  • Key Operations:

    • Email Check: The system verifies whether the provided email already exists using an Is Email Exist API or database lookup.
    • Phone Number Check: Ensures the provided phone number is unique via the Is Phone Exist check.
    • Password Strength: Ensures the password meets security requirements via the Check Password Strength service.

  • Outcome:

    • If all checks pass, a new user account is created using an API (e.g., /public/api/v1/users/create).

3. User Login (Login Form)​

Login Email Form

  • Form Components:

    • Email
    • Password

  • Key Operations:

    • Authentication Request: Sends the user’s credentials to the /public/api/v1/login endpoint.

  • Outcome:

    • Success Case: On successful login, the system generates a session token for the user.
    • Failure Case: If the credentials are invalid, appropriate feedback is given.

4. Session Management​

  • Purpose: Manages the lifecycle of user sessions.

  • Key Components:

    • Access Token: Retrieved from /api/v1/accessToken for authenticated user communications with protected resources.
    • Session Refresh: If the access token expires, it can be refreshed via the /api/v1/sessions/refresh/{token} endpoint.

  • Flow:

    • After successful login, the system provides an access token to the user.
    • The token is used for accessing private or restricted resources.
    • If the session token expires, the system uses the refresh token to generate a new access token, avoiding the need for re-login (refresh is available subject to application settings).

5. Admin Management​

  • Purpose: Provides administrators with access to manage users, monitor logs, and perform other privileged operations.

  • Endpoints:

    • Admin Login: Admins log in through a separate authentication flow at /admin/api/v1/login.
    • Admin Session Management: Similar to the user flow, admins can refresh their sessions via /admin/api/v1/sessions/refresh.

6. Web3 Integration​

  • Purpose: Enables Web3-based authentication, such as login via crypto wallets (Metamask and Trust Wallet).

  • Key Endpoints:

    • Signature Verification: Verifies the authenticity of a Web3 signature via /public/api/v1/web3/signature.
    • Account Creation: Users can create Web3-based accounts through /public/api/v1/web3/create.
    • Web3 Authentication: Authentication is carried out through the /public/api/v1/web3/authenticate endpoint, where users can log in using their Web3 credentials.

7. Additional Services​

  • Password Strength Check: Integrated with both the signup and password change flows to ensure strong password policies.
  • Duplicate Data Validation: The system checks for duplicate emails and phone numbers, ensuring that only unique user accounts are created.

8. Frontend Components​

  • Sign-Up Form: Visible on the frontend to gather new user information.
  • Login Form: Visible on the frontend for existing user authentication.

9. Backend Interactions​

  • Auth Central Service: A central component managing most authentication and session-related tasks.
  • Token Management: Manages generating and refreshing access tokens for both users and admins, ensuring secure session persistence.
